Introduction

The program goal is to demonstrate a scale model of the solar system anywhere on Earth using Google Maps. To enter the program shows us a window as the figure being proposed on a scale in which the distance from the Sun to the Earth is 1000 m.

At the top there are buttons to switch language (available in Catalan, Spanish and English).

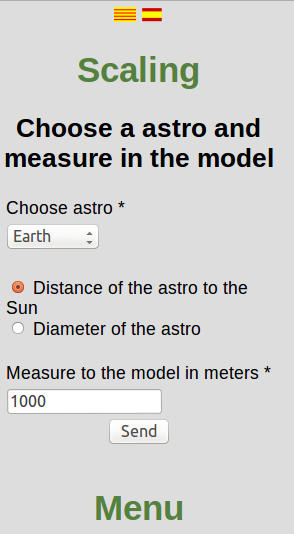

Then we have to change the form of scale. By default the program assumes that the distance from the Earth to the Sun in the model is 1000 m. Press the send button we show a model of the solar system to scale selected as shown in Fig.



In the list of planets Pluto was included even though it is not currently considered a planet for inclusion in the model and get an idea of ​​its size and distance to orbit.

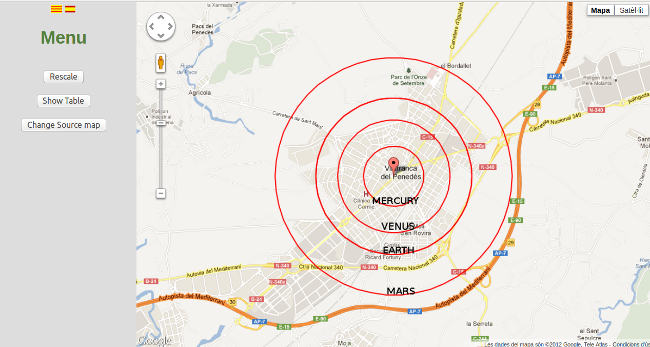

By default the center of the model is Vilafranca. On the right side of the window to have a menu button for Scales, Table View and Change the origin of the map as shown in the figure:

For the model can be represented in a scale was consistent with the size of the Earth and the resolving power of Google Maps. So just the stars who are drawn away from the Sun in the model is 10 m lower than 3000 km.

See the demo

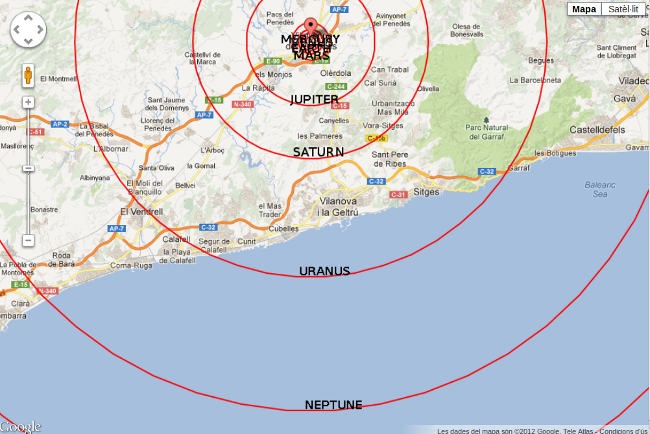

We can see the model when the program began, from the forms to change the scale or the origin of the map or click on the Send button when viewing from the Data Table Map pressed the button. In any case we find a window similar to the figure:

Normally all the planets are not visible clearly in the window, in fact it is impossible to show all the planets clearly in a window. When we separated the first four planets (Mercury, Venus, Earth and Mars) have not seen the other as shown in the figure above. If we change the scale of the map to view all planets then the first planets are piled as shown in the figure:

On the left we have the map zoom control allows you to enlarge or reduce the scale. Can drag the map to change the center or use the controls on the top left.

Show table

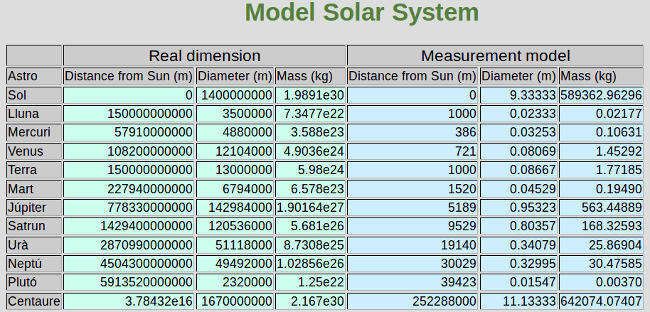

If we're seeing the demo  and press the Show table button will be displayed as a window of figure:

Where can we see the actual data of the solar system and the data in the model. The mass in the model was calculated assuming the same density as the real star.

Rescale

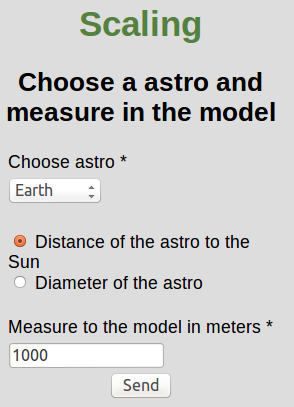

If we see the model or table level have the Rescale button on the left side of the window. If we press a menu like the figure on the right side of the window:

We have a combo box where we choose what we want to sign the star sizes scale.

We also have two radio buttons where if we want to select the distance from the star to the Sun or the diameter of the star.

Finally we have the box that you have to type the distance in meters. The decimal point is the point, not a comma.

By clicking the Submit button to view the scale model selected.

Change the origin of the map

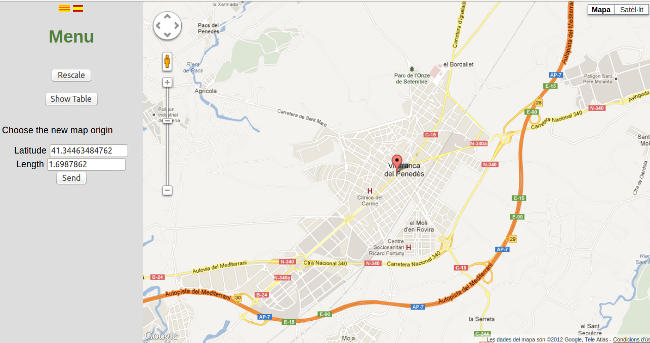

While watching the demo table or have the button to change the origin of the map. This button shows a window like the figure:

In the meadow right corner we have a map where you can select the position of the sun on the demo by clicking with the mouse. In doing so the coordinates are selected on the form.



We can also type in the coordinates of the new point directly on the form. The decimal point is the point, not a comma.
By clicking the Send button to display the model in the new sun rise.



Register

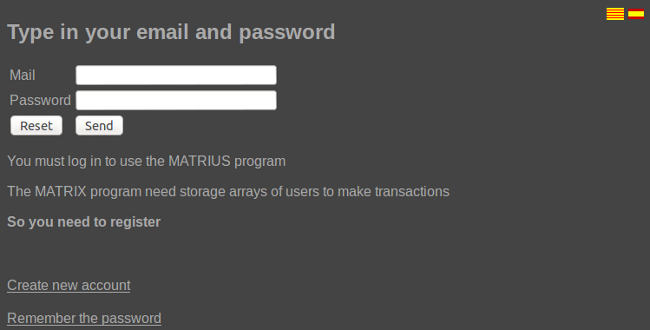

To use the program dies to register as the program stores data (arrays) user to the server. Thus arrays will always be available. So when you access the program shows a window as in figure


ask for credentials.
At the top right you have the flags to change the language (available in English, Catalan and Spanish).
At the bottom we have a link to register if you have not we have not done and another to remember the password (send an email with the new password).

Introduction.

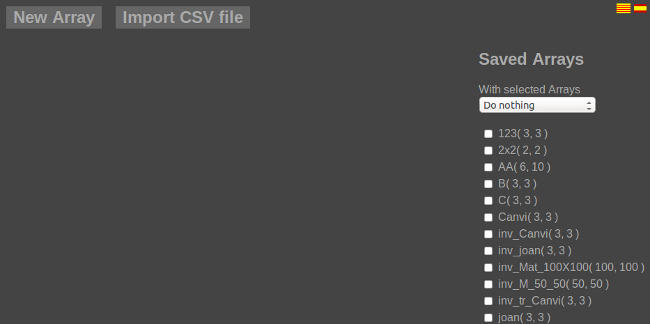

Once we hagem accredited program shows a window like the figure:

At the top of the window have the button to create a new array and import a CSV file.

On the right is a list of matrices that the user has saved. Each list item can be selected. You can select more than one array simultaneously.

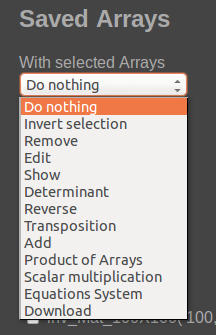

We have a selection box as the figure to choose what we do with arrays indicated.
For normal operation of the program follow these steps:

  • Select the array or matrix object of our operation.
  • Select the operation of the combo box.
  • On the left side of the window shows us the result of the operation.
  • If the operation has been done without problems in the matrix resulting from the operation is stored in the list of arrays for later use.

Create a new array

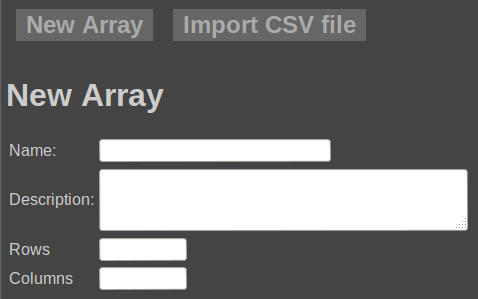

To create a new array to press the button  in the upper left that shows a window like the figure:

Enter the name and description of the new array. When we have introduced the number of rows and columns will appear in the table to enter the numbers as shown in the figure:

Once you have typed the numbers and press the new array of arrays listed as shown in the figure:

Import a CSV file

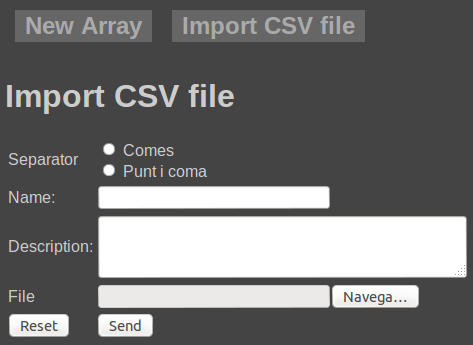

To import a CSV file to press the button  at the top of the window. We work as a window of figure:

You must select whether the column separator is a semicolon or a comma. You must give a name to the array, type the description and select the CSV file.
We can generate the CSV file manually or use a spreadsheet. If you use a spreadsheet should be noted that in cell A1 is having the value of the first row first column. In the spreadsheet should not have titles, there are only having values ​​in the array starting at cell A1.

Remove matrices stored

To remove one or more arrays from the list you need to select the matrix or matrices to remove the combo box and select the Remove option.
On the left side of the window will list the arrays eliminated.

Edit matrix

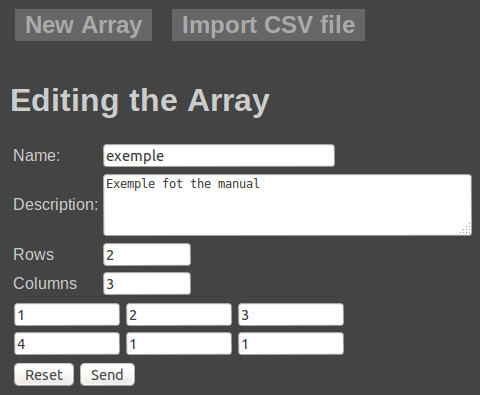

To edit the array must select the matrix edit in the matrix and select edit combo box. We work as a window of figure:

We can edit the name, description and values ​​naturally.
If you modify the value of the rows or columns, with a smaller value and sends the data irreversibly lose the values ​​of the columns or rows deleted. Reducing the number of rows or columns can accidentally leave any editing option selected in the combo box but by pressing the Send button.

If we expand the number of columns or rows retain the values ​​of the original rows and columns.

Show a matrix

We can show an array by clicking on the name in the matrix or by selecting it from the list and choose Show combo box. We see a window like the figure:

We can select more than one array simultaneously and we show you selected as shown in the following figure:

Calculate determinant

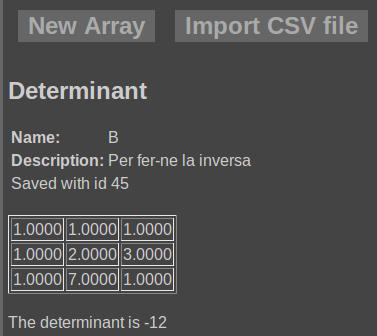

To calculate a determinant just select the array and combo box choose Determined. We are presented with a window like the figure:

Keep in mind that it is possible to calculate certain of square matrices.

Calculate the inverse matrix

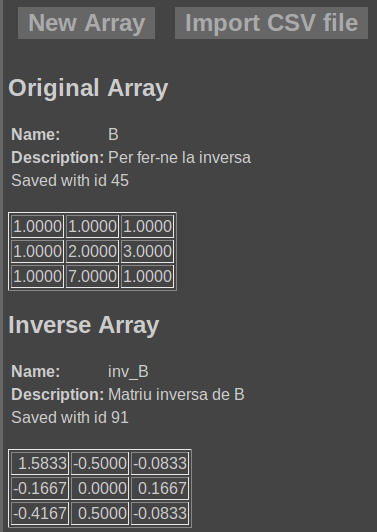

To calculate the inverse matrix simply select the combo box and choose Inverse. We are presented with a window like the figure.

To see a list of arrays with new array called Nommo inv_NomMat where is the name of the array we calculated the reverse as shown in the figure:

You can only calculate inverse square matrices.

Trasposta calculate a matrix

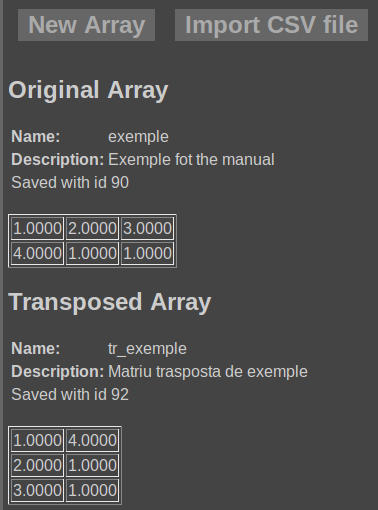

To calculate a matrix trasposta simply select it from the combo box and choose the option Trasposition. We see a window like the figure:

To see a list of arrays with new array called Nommo tr_NomMat where is the name of the array that we trasposta calculated as shown in the figure:

Adding arrays

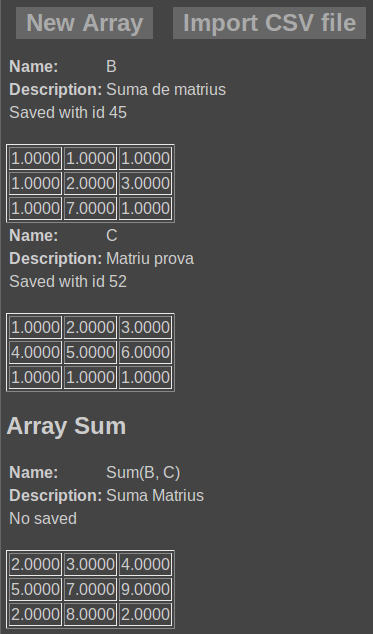

To add two or more arrays must be selected for the combo box choose Add. We see a window like the figure:

To see a list of arrays with new array called Sum (Nom1, name2) where Nom1 and name2 are the names of the matrices that have joined.
To add two or more arrays must have the same number of rows and columns.

Matrix multiplication

To compute the product of two matrices just select them and choose the combo product of arrays. If any of the products of the first matrix by the second, the second to the first or both the program computes and displays. To compute the product of two matrices should the number of columns in the first matrix is ​​the same as the number of rows of the second.

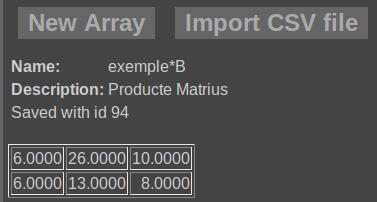

The program shows a window similar to the figure:

The program saves the results calculated with the product name on Nom1 Nom1 * name2 is the name of the first array of bread products and name2 in the second.

Scalar product

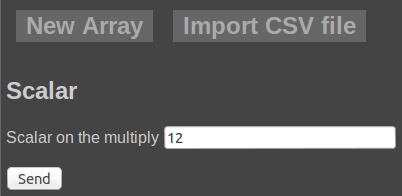

To calculate the scalar product of one or more arrays just select it or select it and the combo box to a scalar product. The program asks the scale as shown in the following figure:

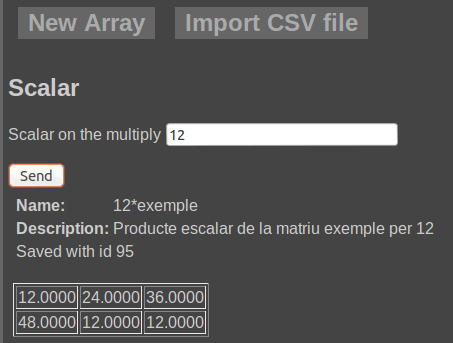

By clicking the Send button the program shows the result as shown in the figure:

The resulting matrix or matrices are stored with the name Nommo * Esc Esc on the scale and multiply that by the Nommo is the name of the array.

Systems of equations

The program solved systems of equations whenever supported. The program interprets the matrix as follows
The first column, all but the last, the terms correspond to the questions multiply. Thus the first column corresponds to the first question, the second in the second ...
The last column corresponds to the term independent.
So the system prompt:

3x

+

2y

+

z=

12



x

+

y

+

z=

17



2x

+

4y

+

4z=

3

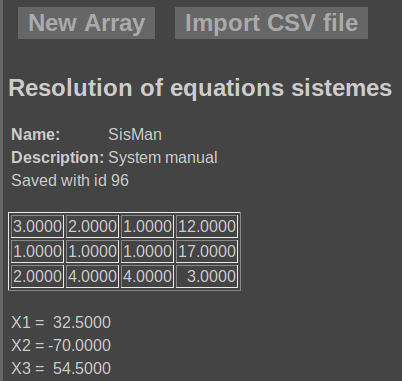

 If we do that with this system we get the result shown in the following figure:

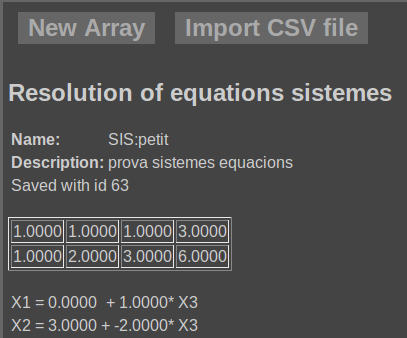

If the system is indeterminate would see a window like the figure:

Download a matrix

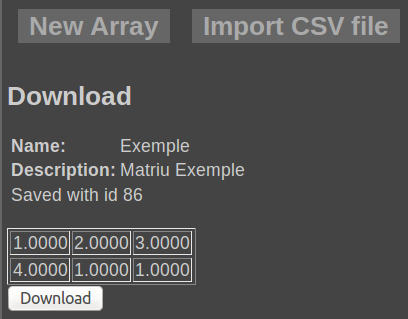

Also you can download an array with CSV to open it with a spreadsheet. To do so, select the array and combo box select Download. We are presented with a window like the figure:

Pressing the button to download the CSV file downloaded.
